QSL9.5 Marine Engine

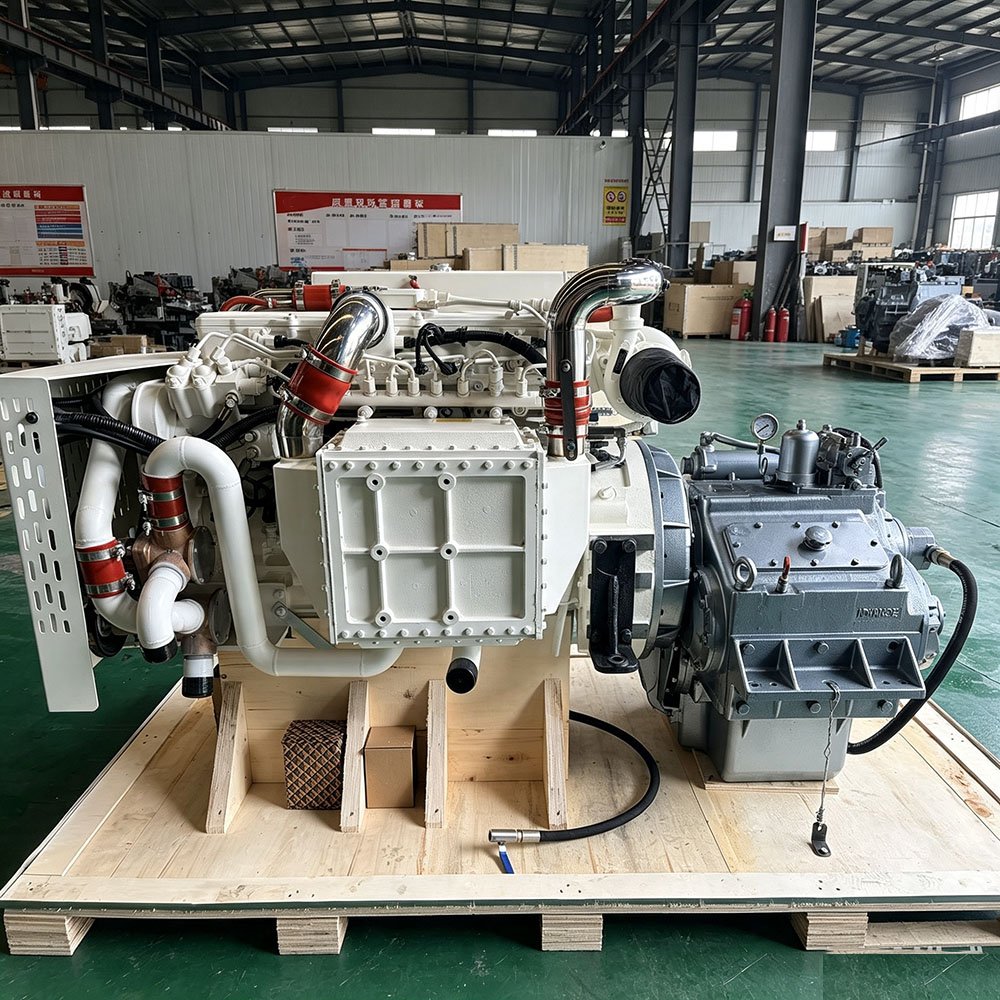

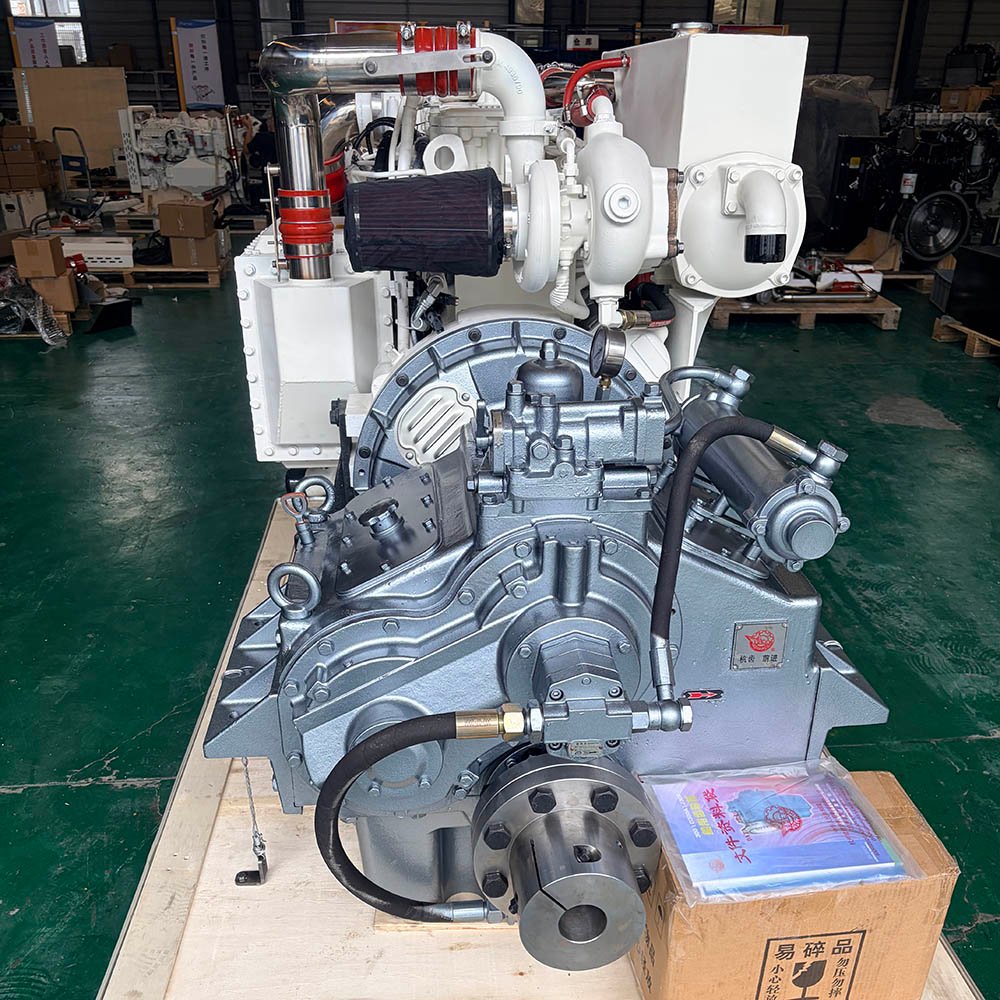

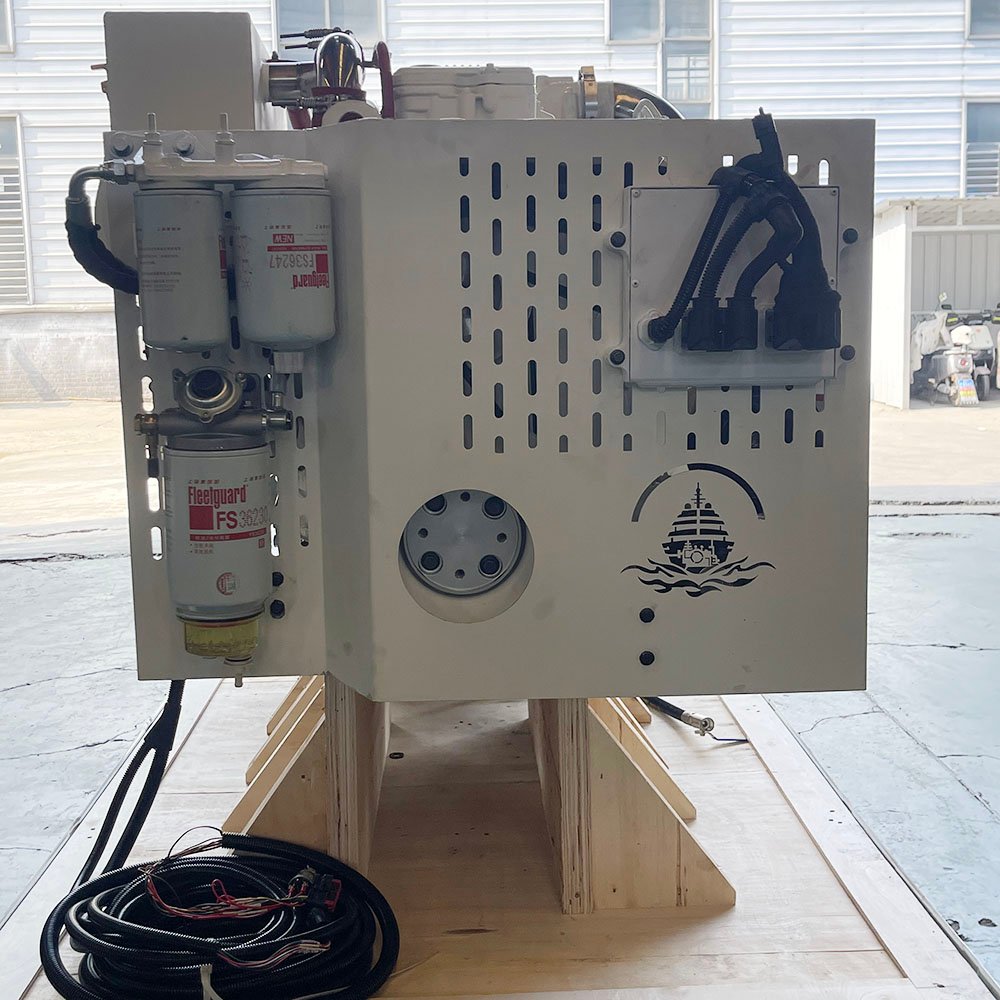

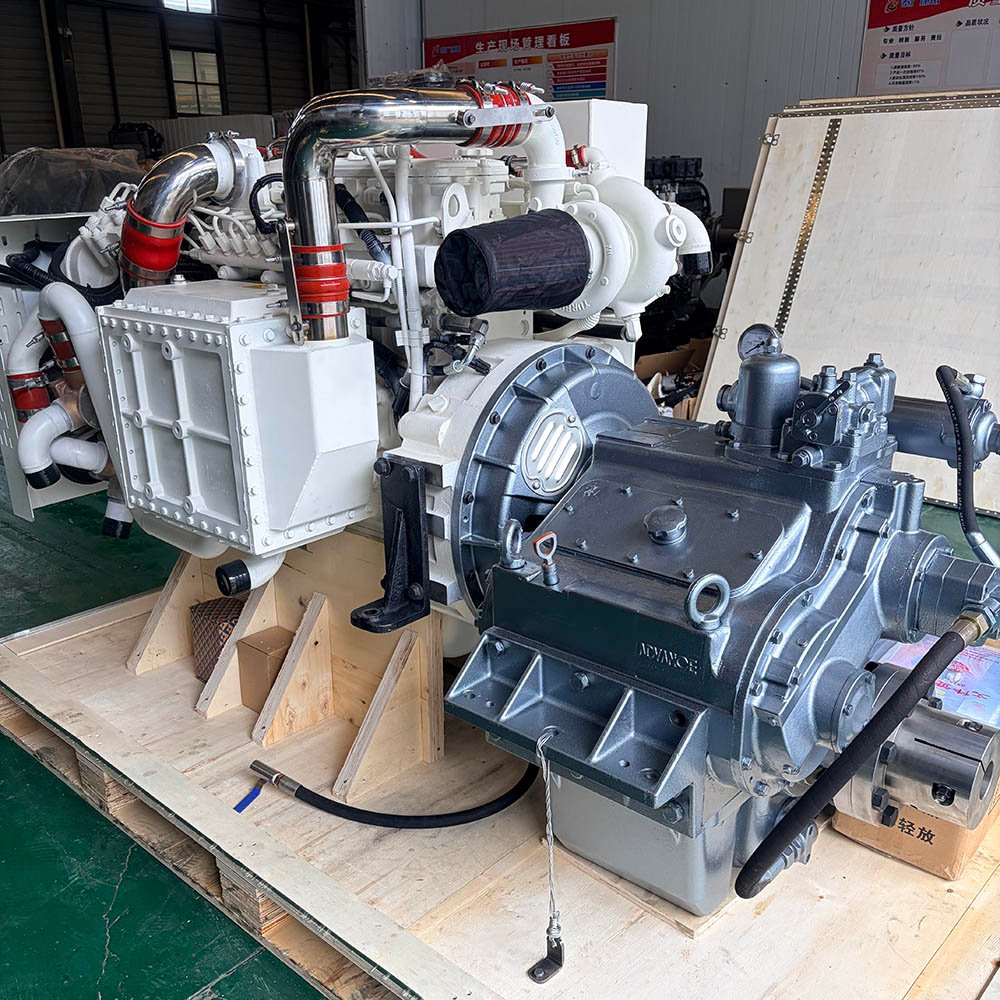

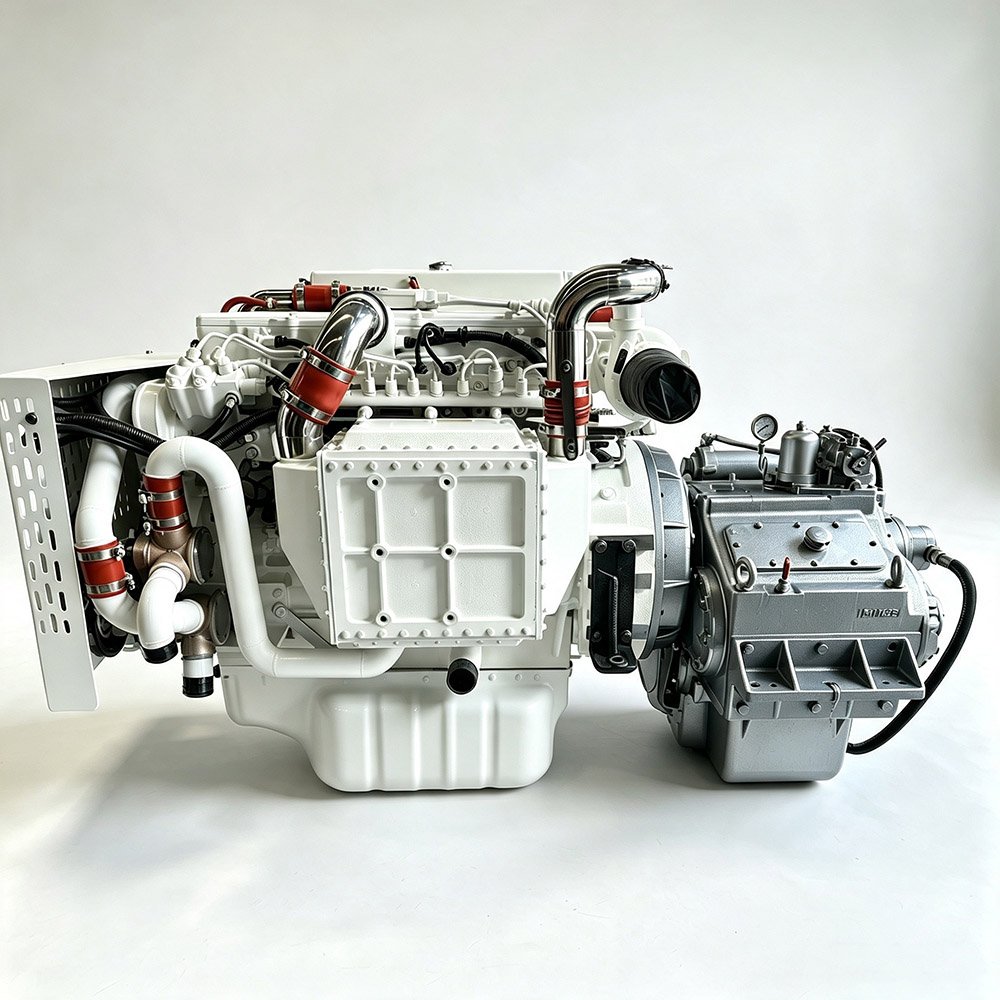

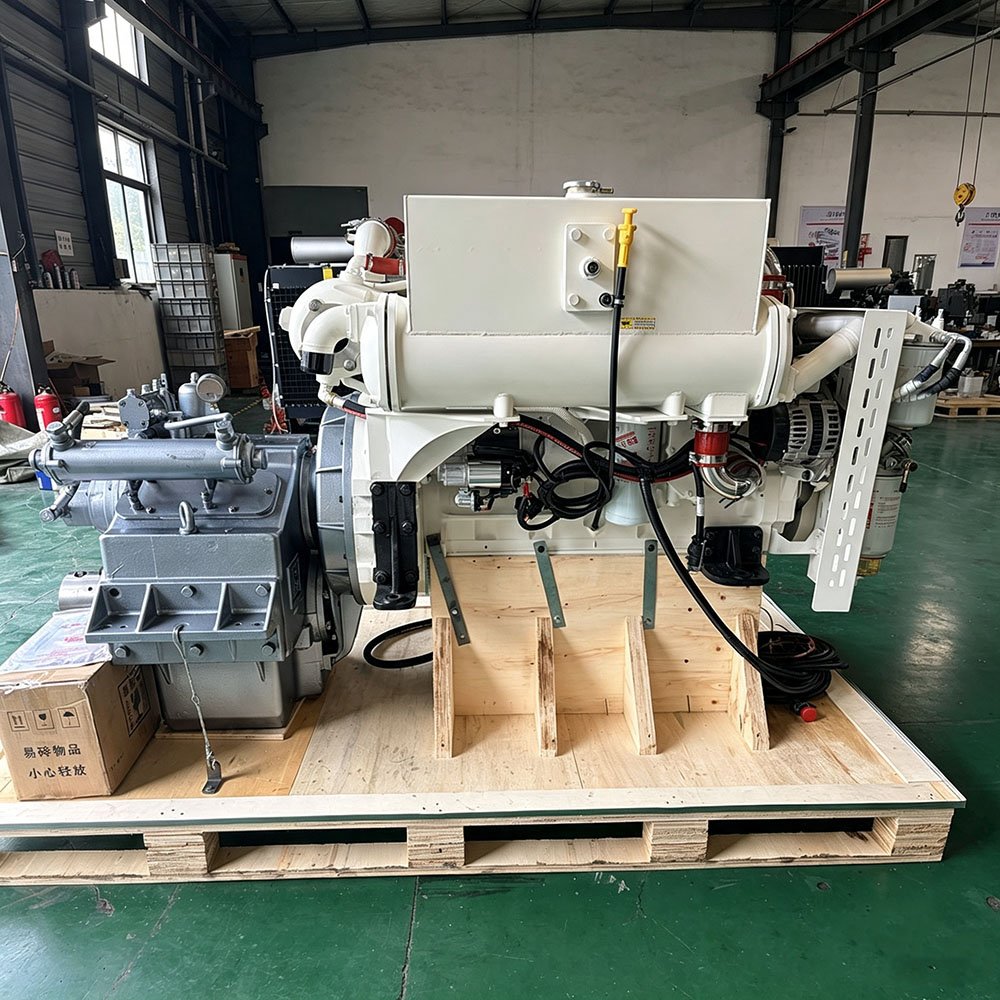

QSL9.5 M500 is a heavy-duty inline six-cylinder marine diesel engine with 500HP rated power. Equipped with professional seawater anti-corrosion structure, stable power output and easy maintenance, it fits marine propulsion, generator and various industrial power equipment worldwide.
Key Specifications
|
Engine Model
|
QSL9.5-M500 (High-Output Marine)
|
|
Base Family
|
QSL9.5 marine engine
|
|
Rated Power
|
500 HP / 373 kW @ 2100 rpm
|
|
Rated Torque
|
~1620 N·m (1195 lb-ft) peak
|
|
Configuration
|
Inline 6, 4-stroke, turbocharged & seawater aftercooled
|
|
Displacement
|
8.9 L (542 in³)
|
|
Bore × Stroke
|
114 × 145 mm
|
|
Fuel System
|
High-Pressure Common Rail (HPCR)
|
Core Features
- Dual-circuit cooling system with Cu-Ni heat exchanger, seawater never touches core engine parts
- Full anti-corrosion configuration: zinc sacrificial anodes, brass seawater pump, stainless steel pipes & bolts
- Marine heavy-duty anti-salt coating, fully sealed wiring and components
- Strict factory performance test for oil pressure, leakage and high temperature endurance
- Wet cylinder liner design for simple repair and replacement
Application
Quality Assurance & Compliance
Warehouse Storage
FAQ
A: Our core business covers diesel engine development, production, customized modification, maintenance and testing; explosion-proof engine R&D and manufacturing; Cummins spare parts supply, as well as engine overhaul and testing services.
A: Export-standard wooden box packaging
A:The specific delivery time depends on the items and the quantity of your order. We will confirm it with your detailed order.
A. Please provide us with your engine model, required rated power and speed, and application scenario. We will then recommend the most suitable model based on those information.
A: We offer professional engine customization services and can fully tailor the products to your specific requirements, with a variety of options available for pricing, specifications and configurations. The minimum order quantity (MOQ) for customized engines is 1 unit.
A:Yes, every engine is subjected to rigorous and comprehensive performance tests prior to shipment. We also provide clients with detailed test videos and electronic data.
A: EXW, FOB, CFR, CIF，DDU，DDP.
A: T/T, X Transfer, L/C, MoneyGram, PayPal, Cash etc
A:Yes, the warranty period is 6 months, covering main engine components. Consumable parts and failures caused by improper operation are excluded.
