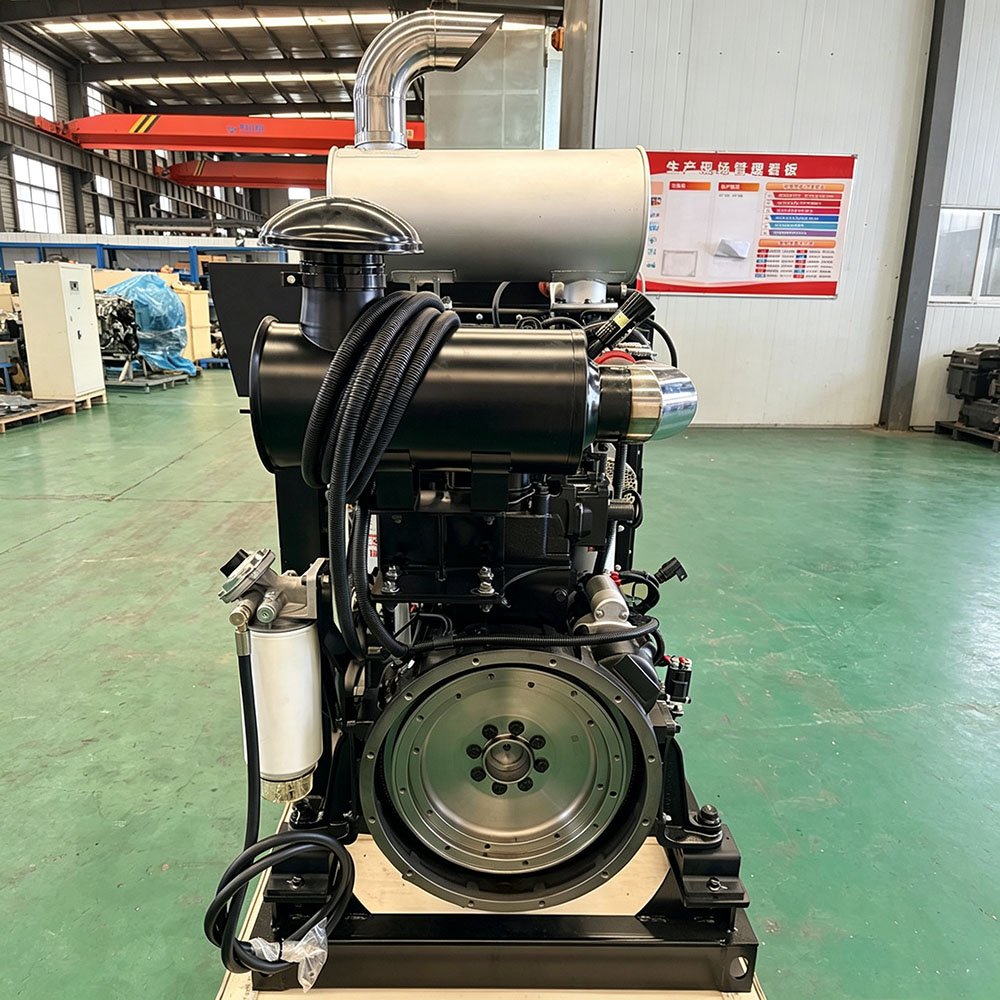

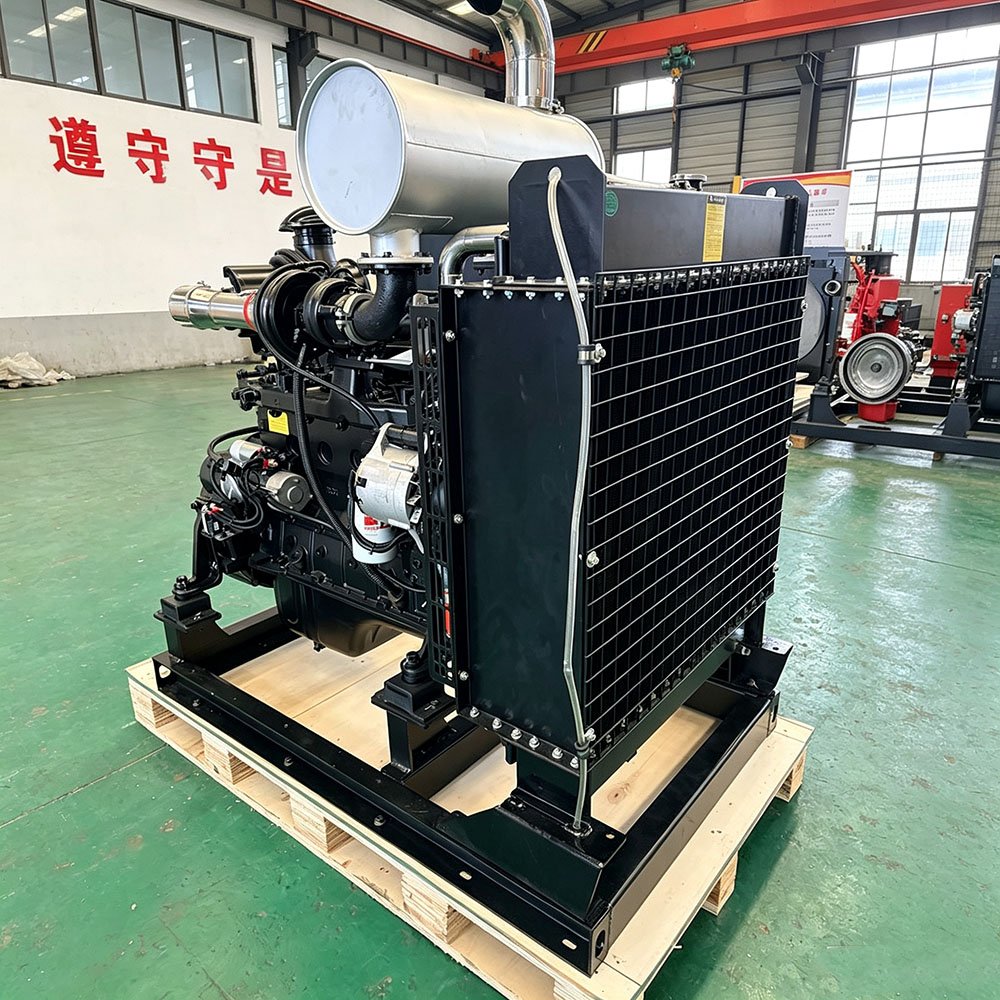

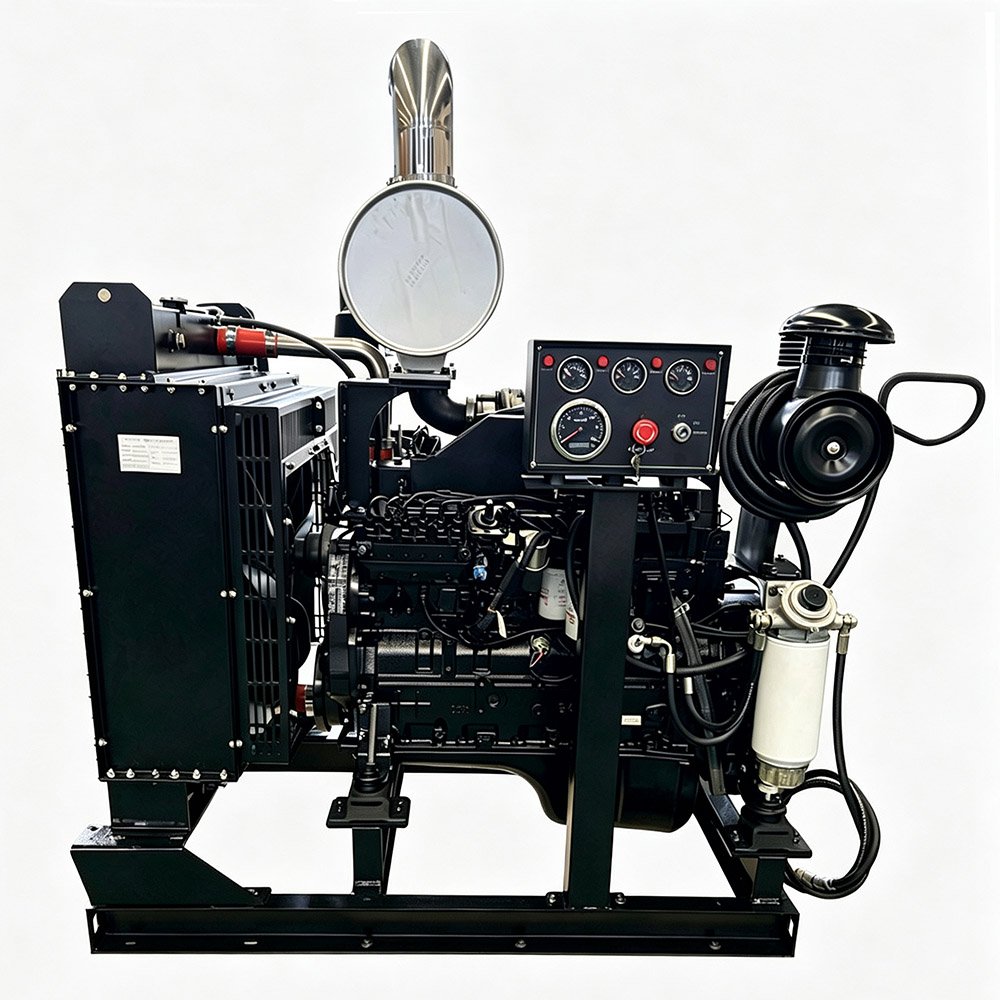

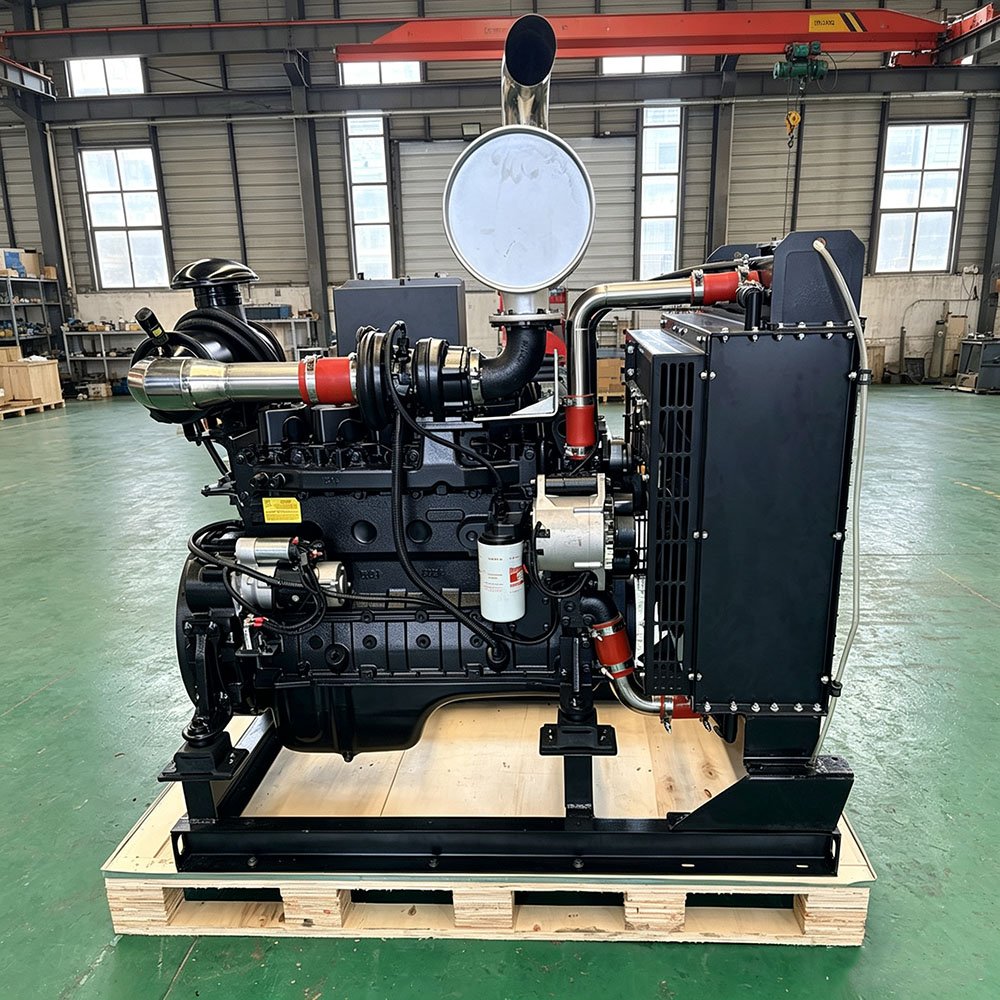

6BTA5.9‑P160 Pump Drive Engine
The 6BTA5.9‑P160 is a heavy‑duty 6‑cylinder inline diesel engine specially configured for pump‑driving applications. With turbo‑aftercooled power output, stable torque performance and rugged mechanical structure, it delivers reliable continuous power for fire‑fighting pumps, water drainage pumps and various industrial pump sets under harsh site conditions.
Technical Parameters
Model: 6BTA5.9‑P160 Pump Drive Engine
Engine Type: In‑line 6‑cylinder, 4‑stroke diesel
Displacement: 5.9L
Bore × Stroke: 102 mm × 120 mm
Rated Prime Power: 120 kW (160HP) @1500 RPM
Peak Torque: 764 N·m @1500 RPM
Aspiration: Turbocharged + Air‑to‑Air intercooler
Fuel System: Mechanical fuel pump with electronic governor
Starting System: 24V electric start
Core Features
- Excellent low‑speed torque performance, stable power output for long‑time continuous pump operation.
- Robust cast‑iron cylinder block structure, good adaptability to dusty, high‑temperature and heavy‑load working environments.
- Electronic governor provides fast load response, meets sudden large‑flow water demand of pump units.
- Flexible power‑take‑off interface, easy to couple with different pump gearboxes and pump heads.
- Compatible with NFPA‑standard pump accessories: intake shut‑off valve, pre‑heater and dedicated engine control panel.
- Strict factory performance test covering oil pressure, sealing and high‑temperature endurance before delivery.
- Mature platform with widely available spare parts, low maintenance cost and easy field service.
Applications
Quality Assurance & Compliance
Warehouse Storage
FAQ
A: Our core business covers diesel engine development, production, customized modification, maintenance and testing; explosion-proof engine R&D and manufacturing; Cummins spare parts supply, as well as engine overhaul and testing services.
A: Export-standard wooden box packaging
A:The specific delivery time depends on the items and the quantity of your order. We will confirm it with your detailed order.
A. Please provide us with your engine model, required rated power and speed, and application scenario. We will then recommend the most suitable model based on those information.
A: We offer professional engine customization services and can fully tailor the products to your specific requirements, with a variety of options available for pricing, specifications and configurations. The minimum order quantity (MOQ) for customized engines is 1 unit.
A:Yes, every engine is subjected to rigorous and comprehensive performance tests prior to shipment. We also provide clients with detailed test videos and electronic data.
A: EXW, FOB, CFR, CIF，DDU，DDP.
A: T/T, X Transfer, L/C, MoneyGram, PayPal, Cash etc
A:Yes, the warranty period is 6 months, covering main engine components. Consumable parts and failures caused by improper operation are excluded.
