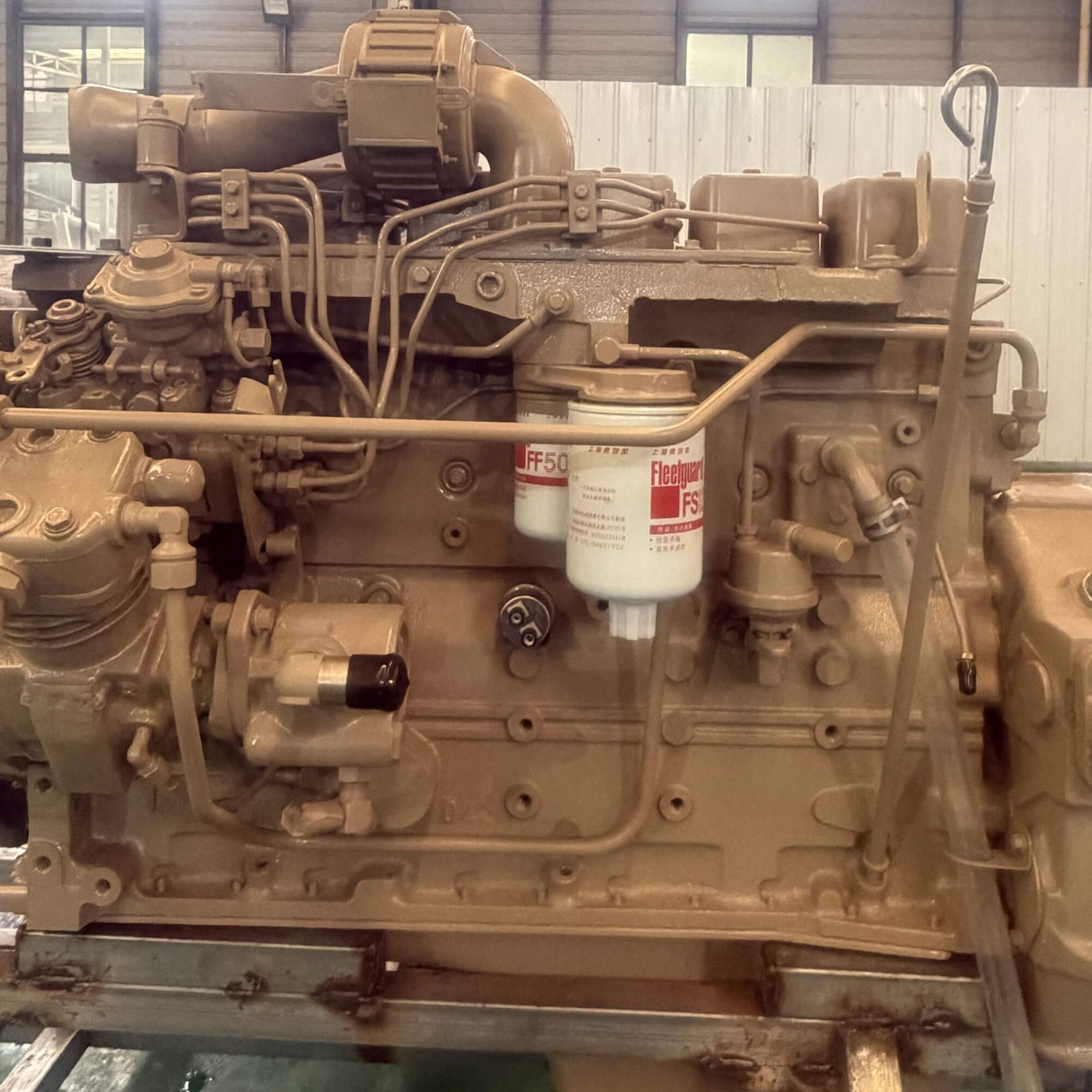

QSB5.9 Electronic Common Rail Diesel Engine for Construction, Generator & Marine Use
The QSB5.9 is a fully electronic, high-pressure common rail diesel engine developed from the legendary 6BT platform.
Known for outstanding durability, fuel efficiency, and wide application coverage, it is widely used in construction machinery, generator sets, marine, and industrial equipment.
Technical Specifications
QSB5.9 Engine Models
| Model | Rated Power (kW@rpm) | Max Torque (N·m@rpm) |
|---|---|---|
| QSB5.9-C130-30 | 97 @ 2200 | 650 @ 1500 |
| QSB5.9-C150-31 | 113 @ 2200 | 690 @ 1500 |
| QSB5.9-C160-30 | 119 @ 2200 | 720 @ 1500 |
| QSB5.9-C170-30 | 125 @ 2200 | 750 @ 1500 |
| QSB5.9-C180-31 | 132 @ 2400 | 800 @ 1500 |
| QSB5.9-C180-33 | 133 @ 2200 | 800 @ 1500 |
| QSB5.9-C180-34 | 133 @ 2000 | 770 @ 1400 |
| QSB5.9-C190-31 | 142 @ 2200 | 800 @ 1500 |
| QSB5.9-C210-30 | 154 @ 2200 | 800 @ 1400 |
The QSB5.9 diesel engine represents the perfect evolution of the classic mechanical 6BT engine, combining its proven mechanical strength with advanced high-pressure common rail (HPCR) fuel injection and full electronic control.
Featuring an inline 6-cylinder configuration, a displacement of 5.9 liters, and a robust cast-iron structure with wet cylinder liners, the QSB5.9 delivers excellent reliability, long service life, and superior performance under heavy-duty operating conditions.
Designed to meet modern emission requirements, the QSB5.9 has become a mainstream transition engine for upgrading construction machinery, generator sets, and marine applications from mechanical to electronic systems.
Key Technical Features
-
High Pressure Common Rail Fuel System
Higher injection pressure ensures better fuel atomization, improved combustion efficiency, and reduced fuel consumption. -
Full Electronic Control (ECM)
Precise control of injection timing and quantity, with comprehensive diagnostics and engine protection functions. -
Legendary 6BT Structural Heritage
Cast iron block, cylinder head, and wet liners ensure exceptional durability and long overhaul intervals. -
Wide Installation Compatibility
Mature installation packages allow easy integration into various equipment platforms.
Key Advantages
-
Wide Power Output Range
Rated power typically ranges from 129 to 186 kW (approx. 175–250 HP), with higher ratings available for special applications. -
Strong Low-Speed Torque
Maximum torque ranges from 700 to 1000 N·m, delivering excellent pulling power at low RPM. -
Excellent Fuel Economy
Benchmark-level fuel efficiency within the same class. -
Low Noise & Vibration
Electronic control and optimized combustion significantly reduce NVH. -
Global Service & Parts Support
Extensive worldwide service network ensures low operating and maintenance costs.
Core Applications
-
Construction Machinery (Largest Market)
Medium excavators, loaders (e.g. ZL50 class), bulldozers, graders, cranes, air compressors, power units -
Power Generation
Prime power for data centers, hospitals, factories, and standby generator sets -
Agricultural Machinery
Large tractors, harvesters -
Marine Applications
Commercial fishing vessels, inland waterway transport boats, workboats -
Special Vehicles
Fire trucks, mining vehicles, airport shuttle buses -
Non-Road Trucks & Buses
Special chassis and off-road applications
Emission Compliance
Designed to meet US EPA Tier 3 / Tier 4i and EU Stage IIIA emission standards, making it one of the most popular engines for emission upgrade projects.
Technical Specifications
QSB5.9 Engine Models
| Model | Rated Power (kW@rpm) | Max Torque (N·m@rpm) |
|---|---|---|
| QSB5.9-C130-30 | 97 @ 2200 | 650 @ 1500 |
| QSB5.9-C150-31 | 113 @ 2200 | 690 @ 1500 |
| QSB5.9-C160-30 | 119 @ 2200 | 720 @ 1500 |
| QSB5.9-C170-30 | 125 @ 2200 | 750 @ 1500 |
| QSB5.9-C180-31 | 132 @ 2400 | 800 @ 1500 |
| QSB5.9-C180-33 | 133 @ 2200 | 800 @ 1500 |
| QSB5.9-C180-34 | 133 @ 2000 | 770 @ 1400 |
| QSB5.9-C190-31 | 142 @ 2200 | 800 @ 1500 |
| QSB5.9-C210-30 | 154 @ 2200 | 800 @ 1400 |
General Specifications
-
Engine Series: Cummins B Series (Electronic Version)
-
Engine Type: Inline 6-cylinder, 4-stroke
-
Displacement: 5.9 L
-
Bore × Stroke: 102 mm × 120 mm
-
Aspiration: Turbocharged & Aftercooled
-
Fuel System: High Pressure Common Rail (HPCR)
-
Control System: Full Electronic Control (ECM)
-
Cooling System: Water-cooled
-
Application: Construction, Generator, Marine, Agriculture
Multiple power ratings, emission configurations, and OEM solutions are available.
Contact us now for price, lead time, and technical support.
| Model |
QSB5.9-C130-30 ,QSB5.9-C150-31 ,QSB5.9-C160-30 ,QSB5.9-C170-30 ,QSB5.9-C180-31 ,QSB5.9-C180-33 ,QSB5.9-C180-34 ,QSB5.9-C190-31 ,QSB5.9-C210-30 |
|---|---|
| Rated Power (kW@rpm) |
113@2200 ,119@2200 ,125@2200 ,132@2400 ,133@2000 ,133@2200 ,142@2200 ,154@2200 ,97@2200 |
| Max Torque (N·m@rpm) |
650@1500 ,690@1500 ,720@1500 ,750@1500 ,770@1400 ,800@1400 ,800@1500 |
| Series |
B Series |
