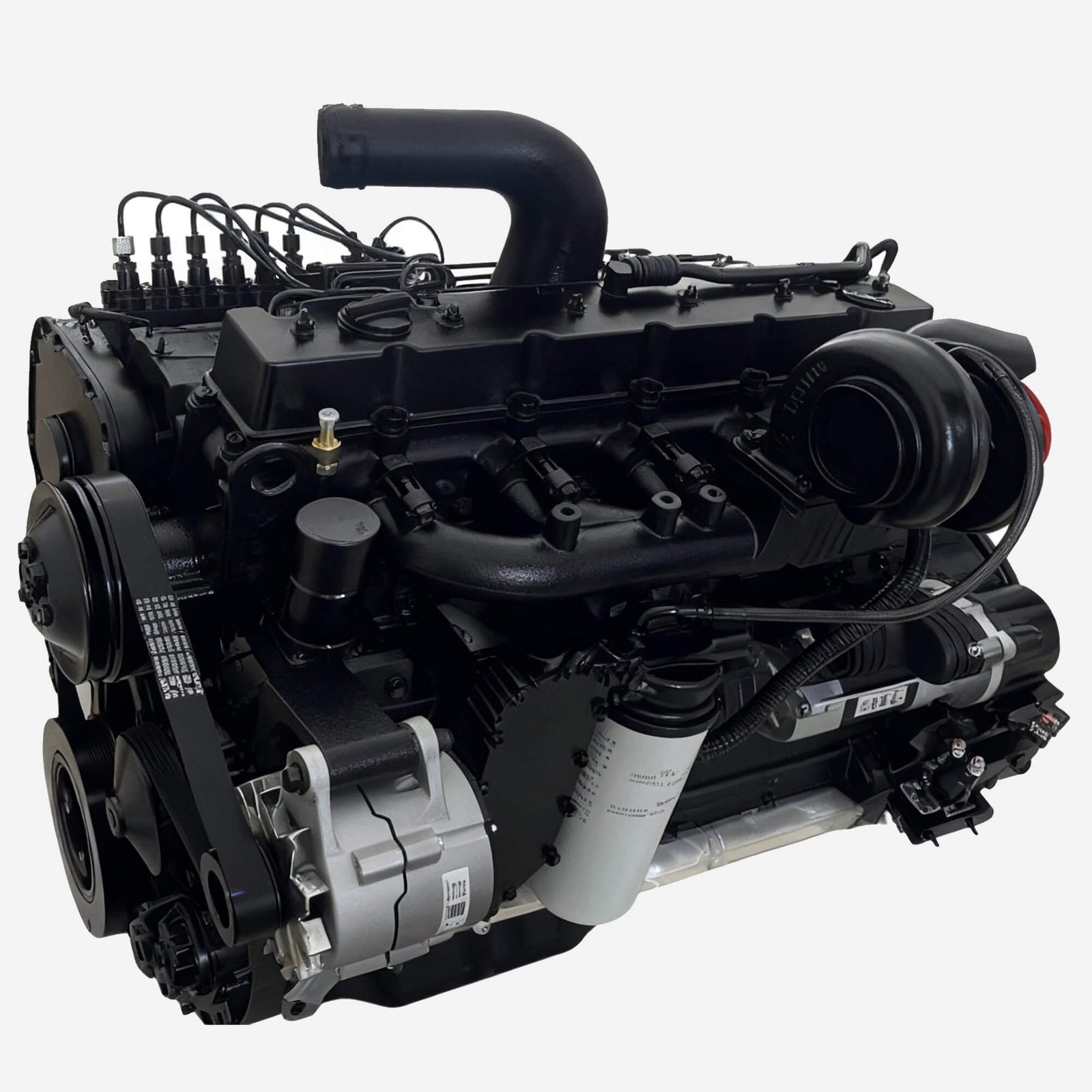

6CTAA8.3 Electronic Diesel Engine for Construction, Generator & Marine Use
The 6CTAA8.3 is an electronically controlled 8.3L turbocharged diesel engine from the C Series platform.
Designed for construction machinery, generator sets, and marine auxiliary power, it delivers strong torque, excellent reliability, and fuel efficiency.
Technical Specifications
6CTAA8.3 Engine Models
| Model | Rated Power (kW@rpm) | Max Torque (N·m@rpm) |
|---|---|---|
| 6CTAA8.3-C145 | 108 @ 1900 | 685 @ 1300 |
| 6CTAA8.3-C215 | 160 @ 2000 | 940 @ 1400 |
| 6CTAA8.3-C240-II | 179 @ 2000 | 1040 @ 1300 |
| 6CTAA8.3-C260-II | 194 @ 2000 | 1120 @ 1400 |
The 6CTAA8.3 diesel engine belongs to the Cummins C Series 8.3-liter turbocharged platform, widely recognized for its robust construction and reliable performance.
Featuring an inline 6-cylinder design, turbocharging, air-to-air aftercooling, and an electronically controlled fuel system (with later versions upgraded to high-pressure common rail), this engine provides excellent power output, low fuel consumption, and stable operation under heavy-duty conditions.
The 6CTAA8.3 is commonly used in construction machinery, heavy-duty industrial equipment, generator sets, and marine auxiliary applications.
Technical Features
-
Inline 6-Cylinder, Heavy-Duty Structure
Strong cast-iron cylinder block ensures high rigidity and long service life. -
Turbocharged & Aftercooled (TAA)
Improves air intake efficiency, power density, and thermal stability. -
Electronic Fuel Injection System
Enhanced fuel control for better performance, lower fuel consumption, and improved emissions. -
High-Pressure Common Rail (Later Versions)
Meets higher emission standards with smoother operation and reduced noise.
Key Advantages
-
Wide Power Coverage
Rated power typically ranges from 180 to 300 HP, suitable for various industrial applications. -
Strong Torque Output
Maximum torque ranges from 900 to 1200 N·m, providing excellent low-speed pulling power. -
Excellent Reliability & Durability
Proven C Series platform widely used in demanding environments. -
Good Fuel Economy
Competitive fuel efficiency within the same displacement class. -
Easy Maintenance & Parts Availability
Large installed base ensures easy access to spare parts and service support.
Typical Applications
-
Construction Machinery
Excavators, cranes, concrete pump trucks
(SANY, Zoomlion, XCMG, etc.) -
Heavy-Duty Vehicles
Special vehicles and older-generation heavy trucks -
Power Generation
Prime or standby diesel generator sets -
Marine Auxiliary Power
Fishing vessels and inland waterway boats
Emission Compliance
Early versions comply with Euro II / Euro III standards, while later electronic versions can be upgraded to higher emission levels depending on configuration.
Technical Specifications
6CTAA8.3 Engine Models
| Model | Rated Power (kW@rpm) | Max Torque (N·m@rpm) |
|---|---|---|
| 6CTAA8.3-C145 | 108 @ 1900 | 685 @ 1300 |
| 6CTAA8.3-C215 | 160 @ 2000 | 940 @ 1400 |
| 6CTAA8.3-C240-II | 179 @ 2000 | 1040 @ 1300 |
| 6CTAA8.3-C260-II | 194 @ 2000 | 1120 @ 1400 |
General Specifications
-
Engine Type: Inline 6-cylinder, 4-stroke
-
Displacement: 8.3 L (8,270 cc)
-
Bore × Stroke: 114 mm × 135 mm
-
Aspiration: Turbocharged & Air-to-Air Aftercooled
-
Fuel System: Electronic Injection / High-Pressure Common Rail
-
Cooling System: Water-cooled
-
Application: Construction, Generator, Marine Auxiliary
Multiple power ratings, emission options, and OEM configurations are available.
Please contact us for price, lead time, and technical support.
| Model |
6CTAA8.3-C145 ,6CTAA8.3-C215 ,6CTAA8.3-C240-Ⅱ ,6CTAA8.3-C260-Ⅱ |
|---|---|
| Rated Power (kW@rpm) |
108@1900 ,160@2000 ,179@2000 ,194@2000 |
| Max Torque (N·m@rpm) |
1040@1300 ,1120@1400 ,685@1300 ,940@1400 |
| Series |
C Series |
