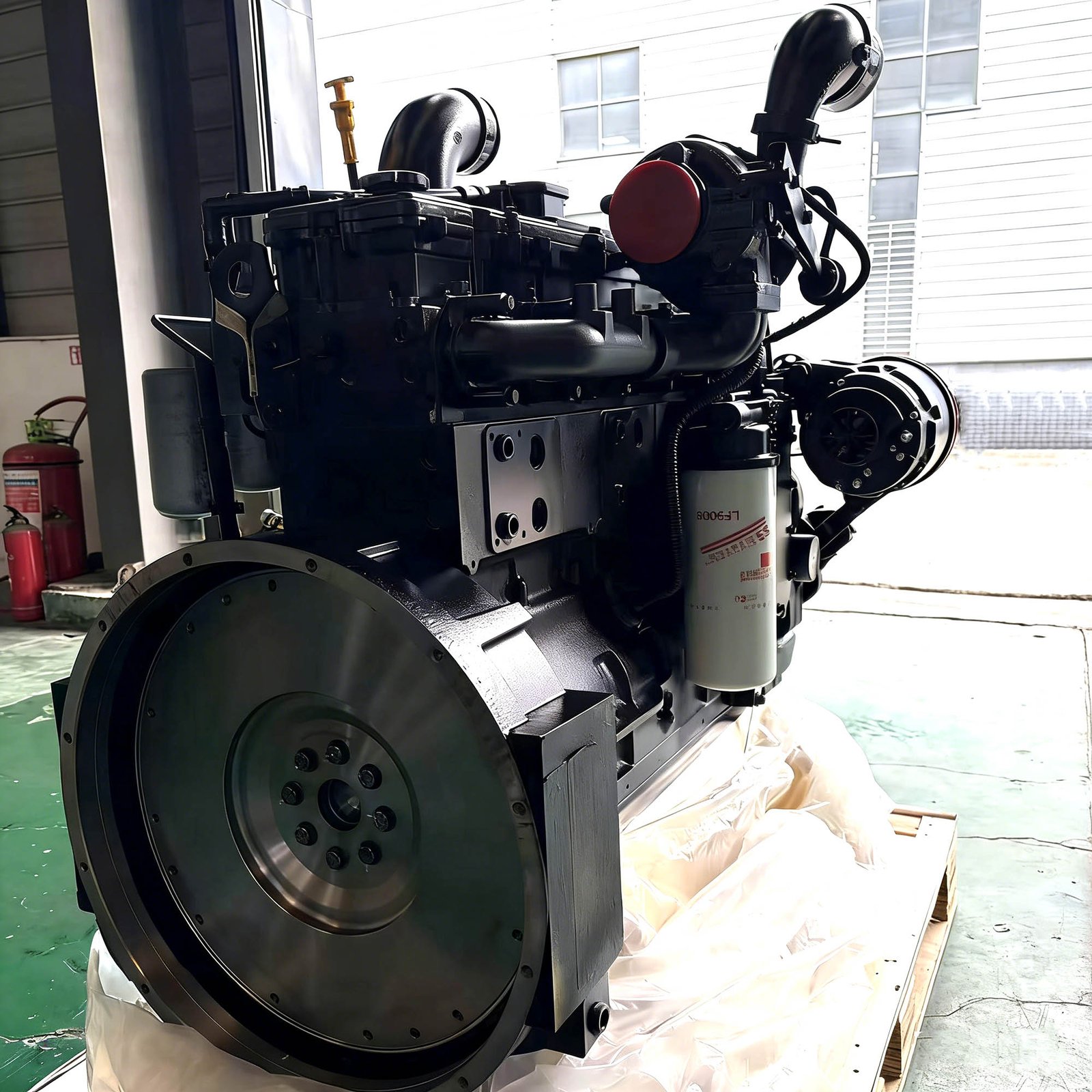

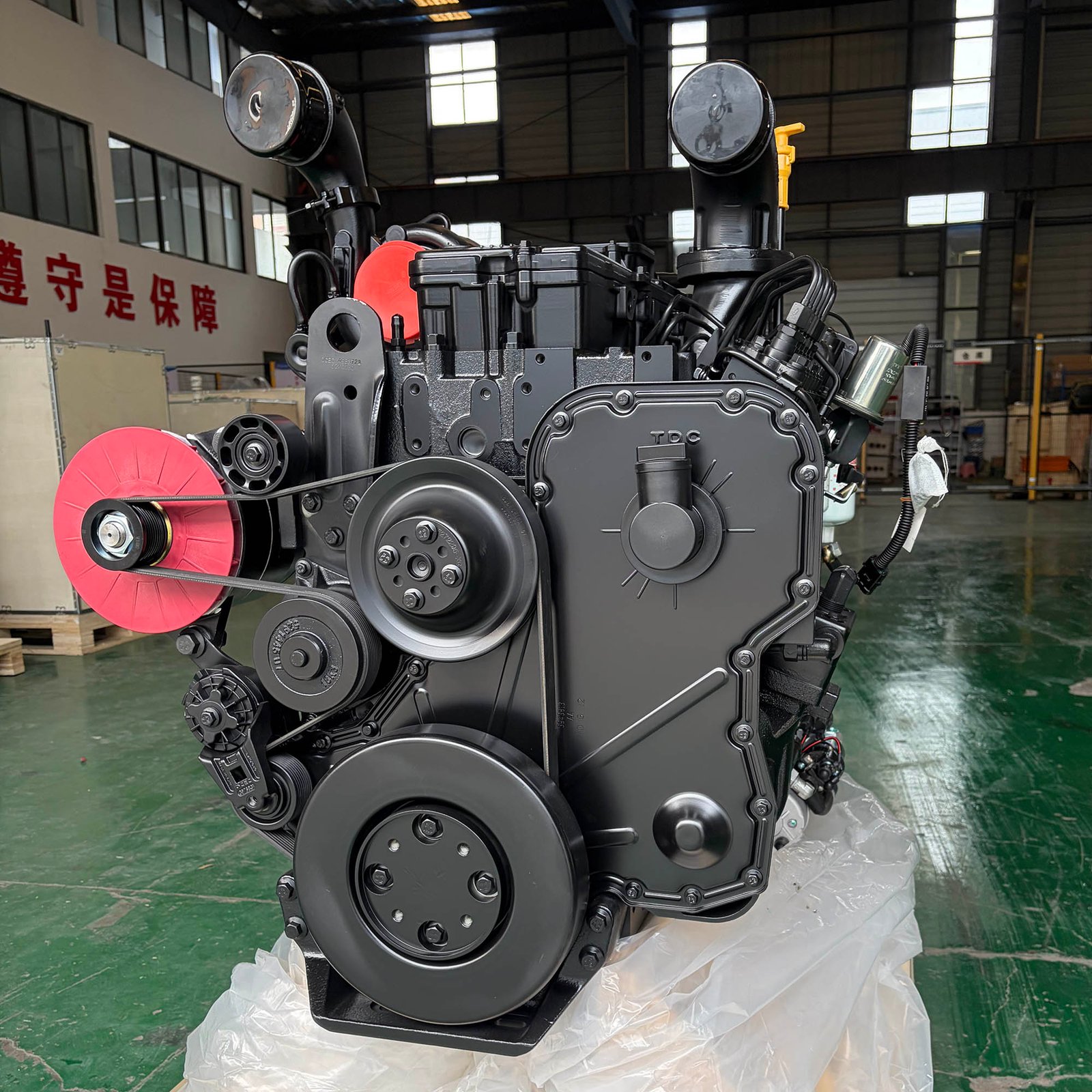

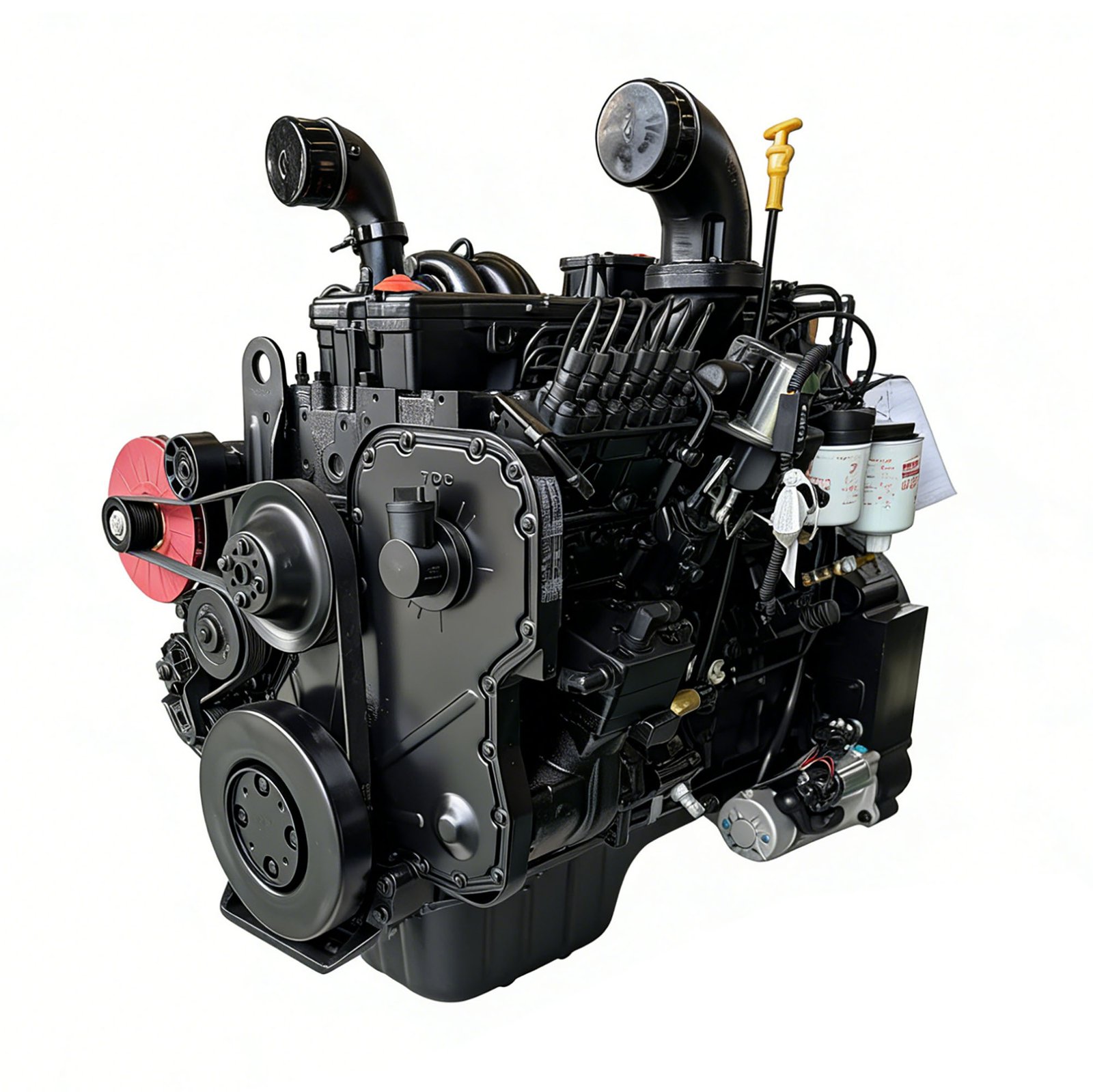

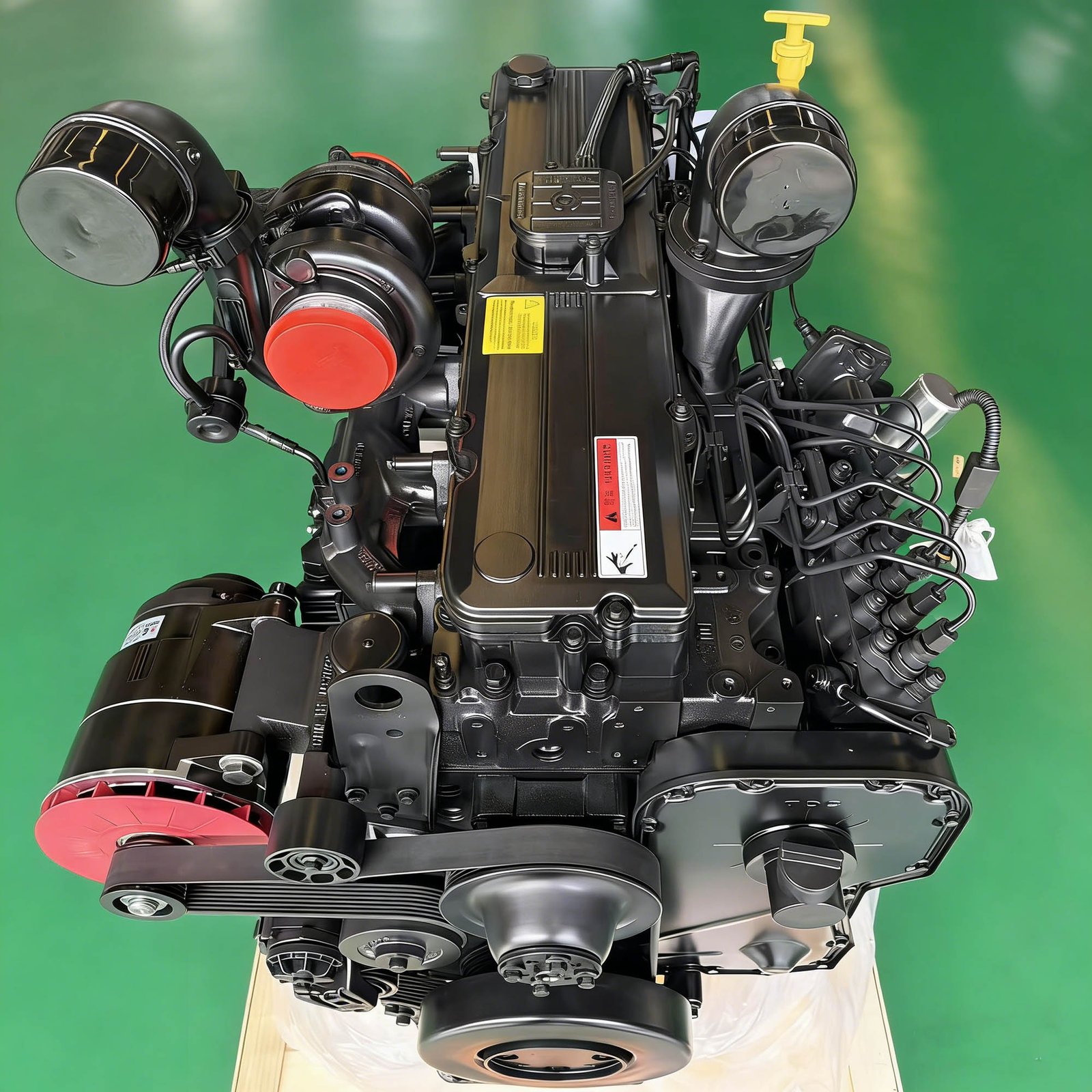

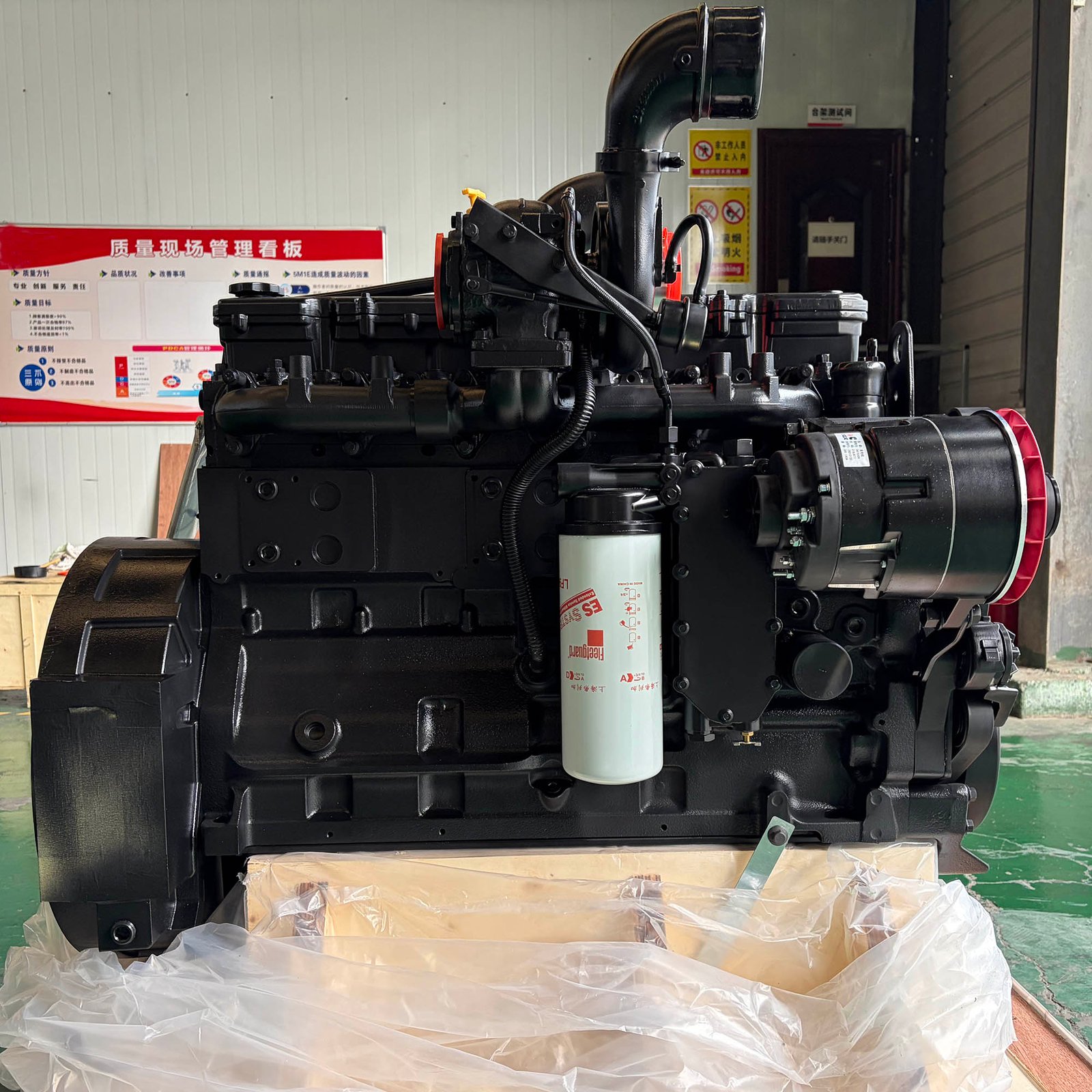

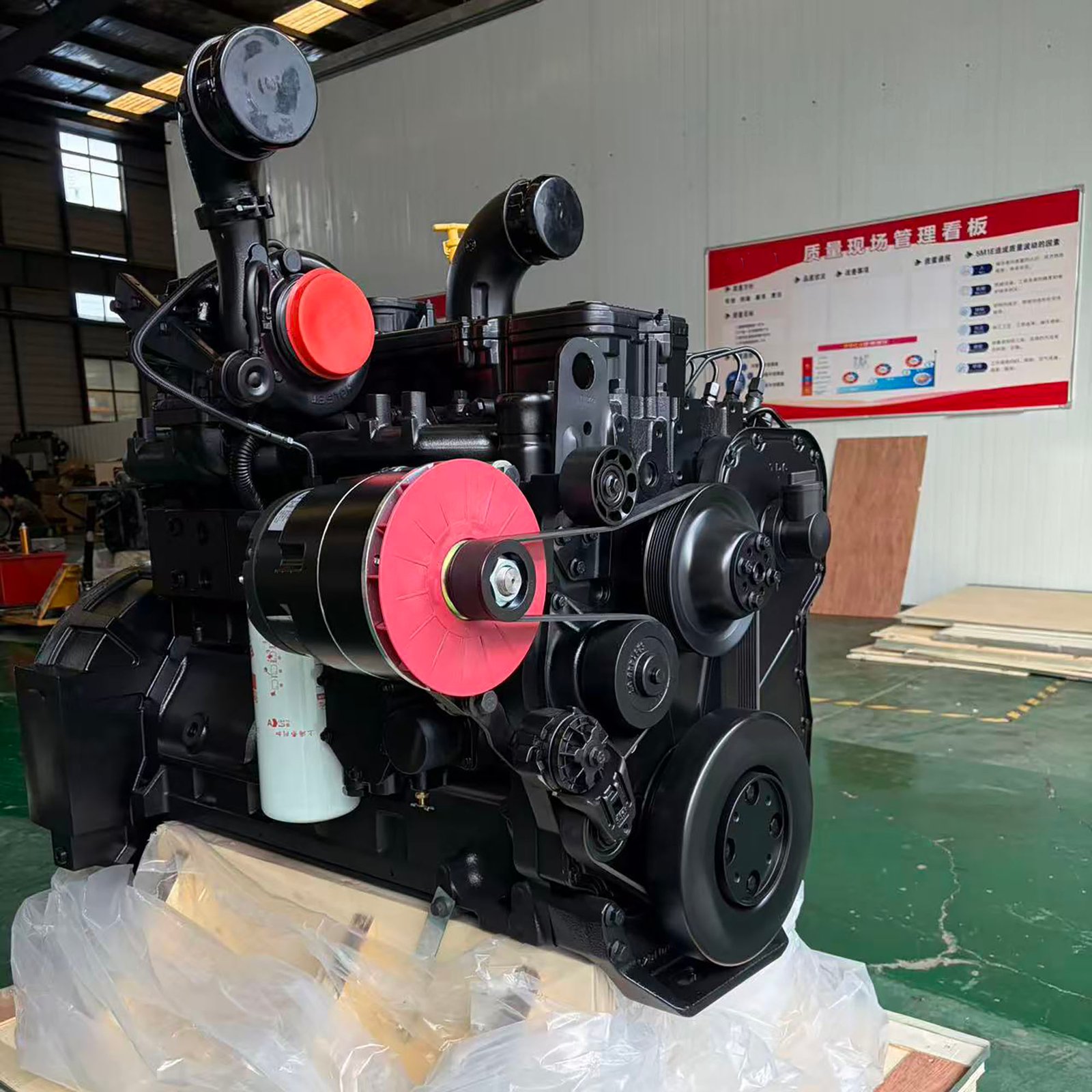

6LTAA8.8M Diesel Engine

The 6LTAA8.9M (commonly known as 6LTAA8.8M) is a legendary model from Dongfeng Cummins’ L-Series platform, specifically engineered as a mechanical pump version for heavy-duty on-highway applications. Powered by an 8.9L inline 6-cylinder engine with a pure mechanical fuel system (P7100 inline pump + mechanical governor), it eliminates the need for complex electronic control modules. Renowned for its “simplicity and ruggedness,” it is the go-to power solution for long-haul transport, construction sites, and mining logistics where reliable maintenance and easy repairs are critical.

Core Specifications

1. Configuration: 6-cylinder inline, four-stroke
2. Displacement: 8.9L (market-common 8.8M designation, same platform with minor labeling difference)
3. Bore × Stroke: 114mm × 145mm, Compression Ratio 16.6:1
4. Rated Power: 194–264kW (260–360HP), Rated Speed 2000–2200rpm
5. Max Torque: 1240–1400N·m @ 1200–1400rpm (high low-end torque for easy starting and climbing)
6. Aspiration: Turbocharged + Air-to-Air Aftercooled
7. Fuel System: P7100 mechanical inline injection pump (no ECU, field-adjustable without specialized tools)
8. Emission Compliance: China Stage II/Non-road Stage II/EPA Tier 2 (ideal for markets with less stringent electronic emission regulations)
9. Cooling System: Forced liquid cooling, suitable for continuous heavy-load operation
10. Transmission Compatibility: Compatible with mainstream heavy-duty truck transmissions (Fast 10/12-speed, Eaton etc.)

Key Advantages

1. Mechanical Robustness for Extreme Environments: No complex electronic modules. Reliable startup at -30°C, stable performance under heavy loads at 50°C, and trouble-free operation in plateaus, deserts, and mining areas—no need for professional diagnostic computers.
2. Ultra-Low Maintenance Cost & Globally Sourced Spare Parts: The proven P7100 mechanical pump design can be repaired at local workshops. Filters, pump heads, valves, and other parts are available worldwide, minimizing downtime and maintenance expenses compared to electronic engines.
3. High Low-Speed Torque for Heavy-Load Applications: Peak torque available at 1200rpm, providing excellent acceleration, climbing, and hill-start capabilities for heavy trucks. Reduces gear-shifting frequency and driver fatigue.
4. Excellent Fuel Economy & Tolerance to Non-Premium Diesel: Optimized combustion and precise mechanical fuel delivery ensure low fuel consumption under full load. High tolerance to fuel quality, making it suitable for regions with low-grade diesel.
5. Superior Reliability & Long Service Life: Reinforced cast iron block, forged steel crankshaft, and force-cooled articulated pistons guarantee an extended B10 life, supporting 24/7 continuous transportation operations.

Applications

• Heavy-Duty On-Highway Vehicles: Dump trucks, earth-moving vehicles, gravel transporters, long-haul heavy-duty tractors
• Special-Purpose Vehicles: Concrete mixers, bulk cement trucks, sanitation compactors
• Regional Logistics: Mining/construction site shuttle vehicles, long-haul routes in remote areas
• Modified Vehicles: Heavy flatbed trucks, special operation vehicles
